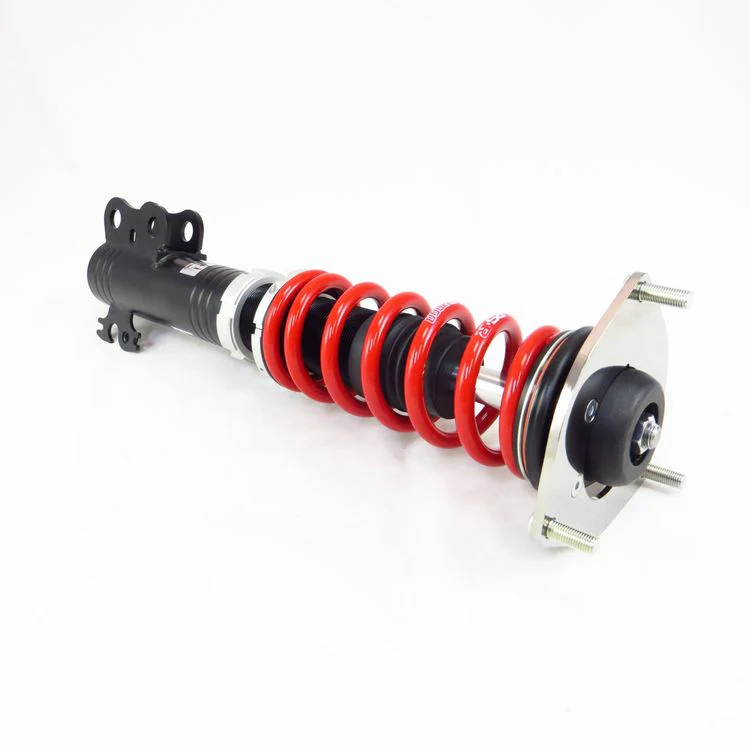

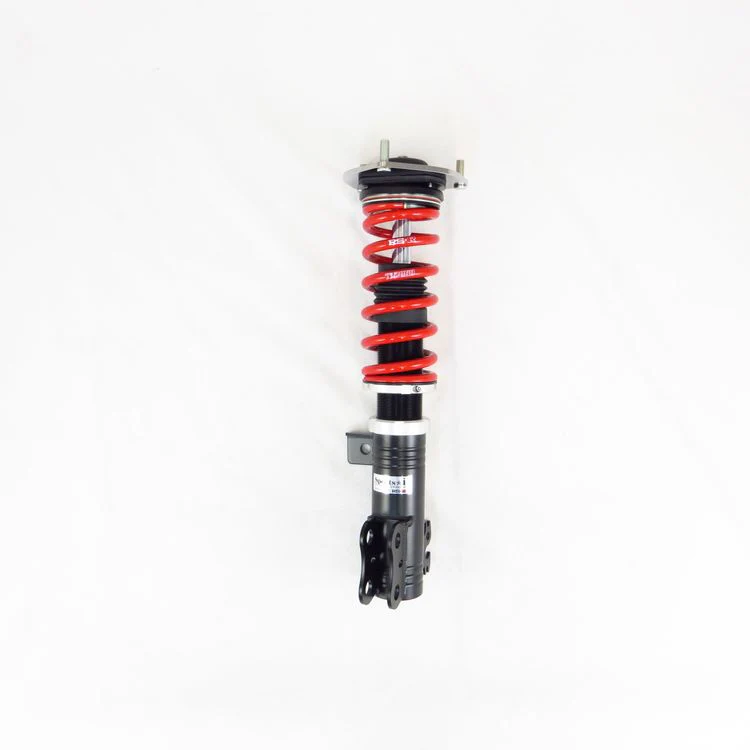

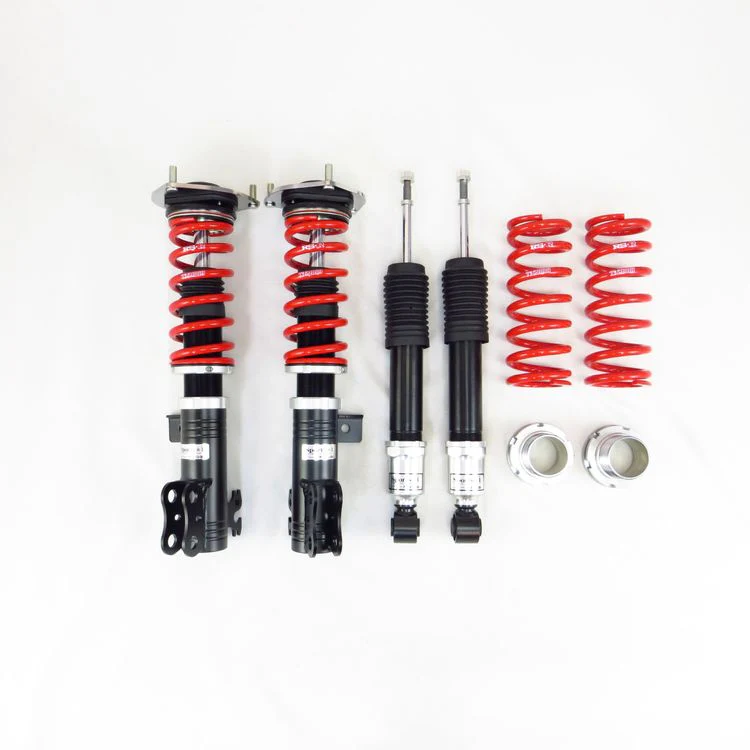

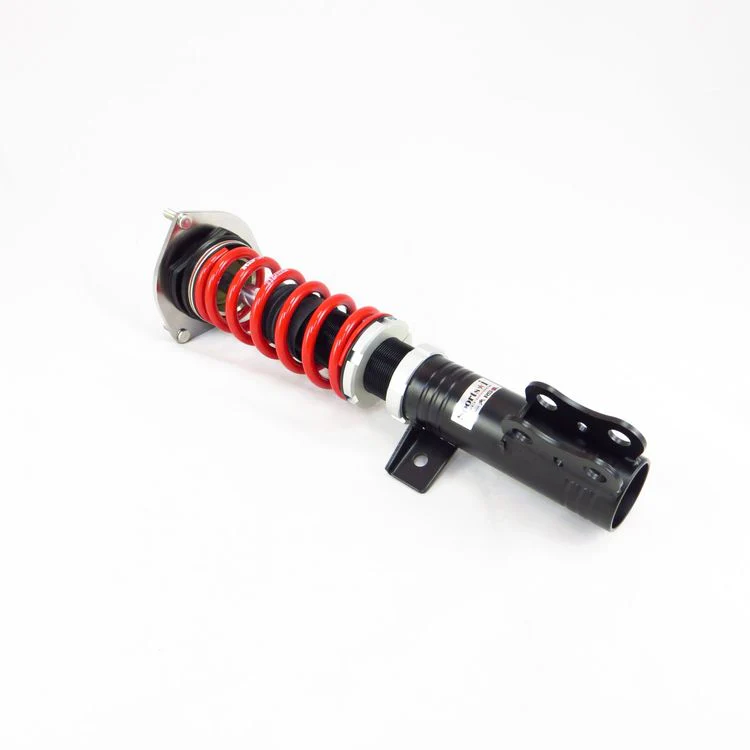

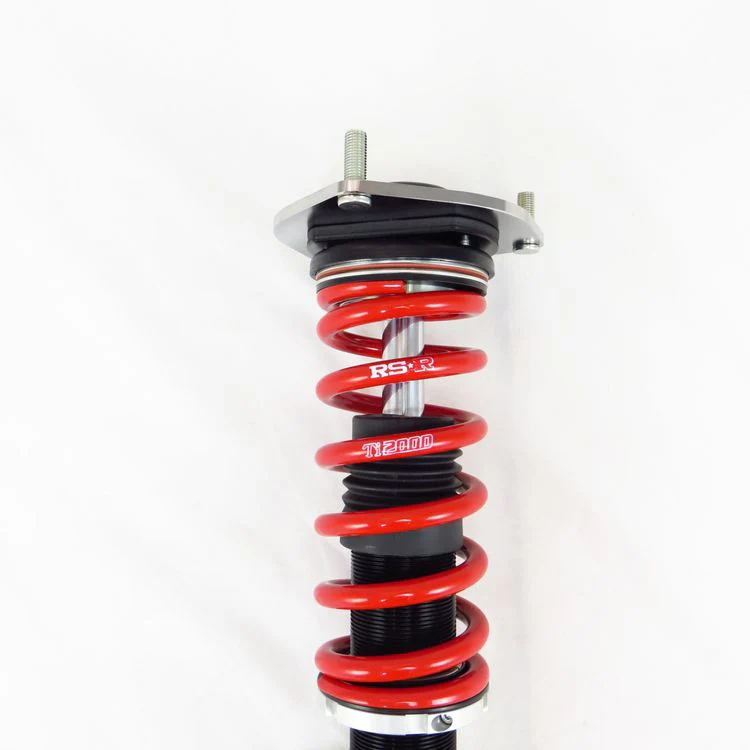

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Product Details

Part Number: XBIT582M Compatibility: 2016-2022 Toyota Prius AWD and FWD Chassis code: ZVW50/ZVW51/ZVW55

Preset Approximate Height: ZVW50

Front: -20mm to -25mm (-0.8in to -1.0in) Rear: -20mm to -25mm (-0.8in to -1.0in)

Maximum Adjustment Range: ZVW50

Front: +20mm to -50mm (+0.8in to -2.0in) Rear: 0mm to -45mm (0in to -1.8in)

Recommended Adjustment Range: ZVW50

Front: 0mm to -45mm (0in to -1.8in) Rear: 0mm to -45mm (0in to -1.8in)

Spring Rate

Front: 6.00kg/mm Rear: 6.00kg/mm

Additional Information

Dampers are 24 way adjustable in the front and 36 way adjustable in the rear Warranty: 1 Year / 12,000 miles from the day of purchase
